Sea Doo 720 SP '97 Individual Gaskets

SKU
Original price $0.66 - Original price $24.12
Original price
$0.66
$0.66 - $24.12
Current price $0.66

Sea Doo 720 SP '97 Individual Gaskets.
Stock Carburetor: Mikuni SBN 39mm Single Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description OEM # Qty. Req.

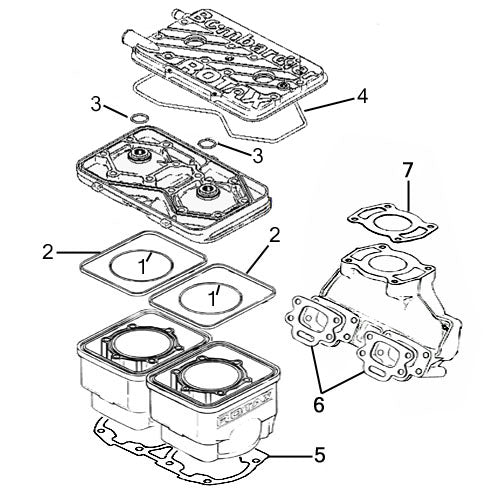

1 Cylinder O-Ring (Inner) 290931410 2
2 Cylinder O-Ring (Outer) 290850045 2
3 Spark Plug O-Ring 290430782 2
4 Head Cover O-Ring 290950360 1
5 Cylinder Base Gasket 290931400 1
6 Exhaust Manifold To Cylinder Gasket 290850635 2
7 Exhaust Manifold To Head Pipe Gasket 290950250 1

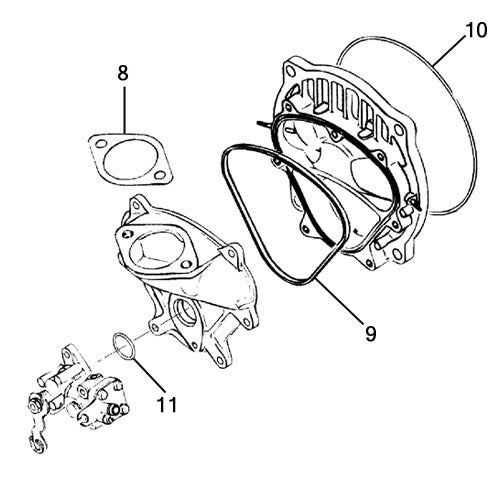

8 Carb. Base Gasket - Mikuni 39mm SBN 290850373 1
9 Rotary Cover Front O-Ring 290850160 1
10 Rotary Cover Rear O-Ring 293300023 1
11 Oil Injection O-Ring 293300018 1

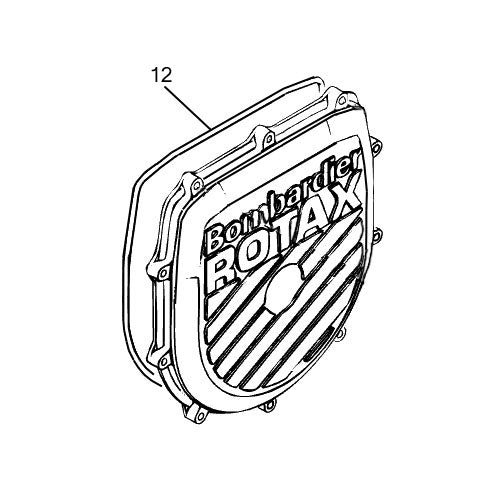

12 Flywheel Cover O-Ring 290831555 1
N/S Crankshaft Oil Seal Kit (Outer Seals Only) - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
