Kawasaki 1200 STX-R '02-05 Individual Gaskets.
Stock Carburetor: Keihin 38mm Triple Carb.
Note: All Gaskets Sold Each.

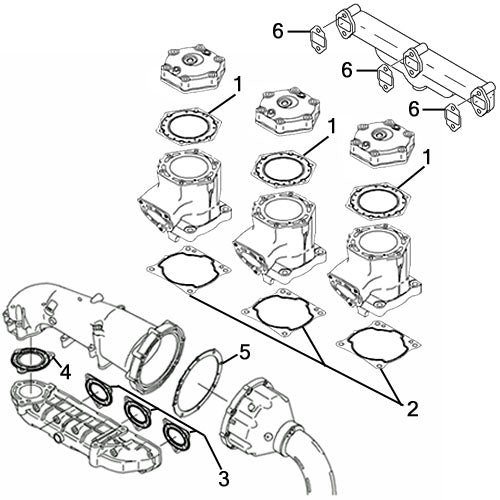

| Ref. # | Description | OEM # | Qty. Req. |

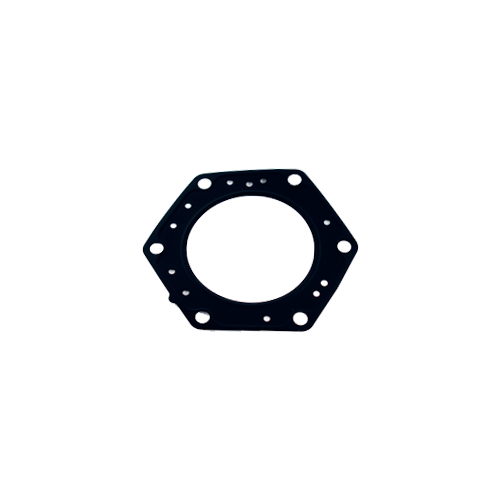

| 1 | Head Gasket (Stainless Steel) | 11004-3717 | 3 |

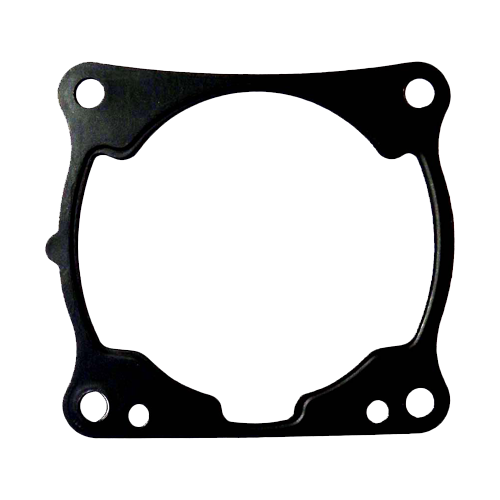

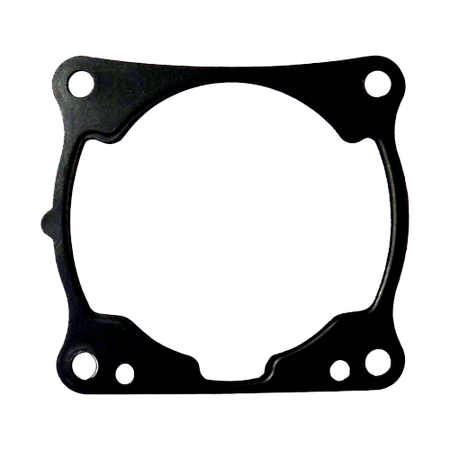

| 2 | Cylinder Base Gasket | 11060-3783 | 3 |
| 3 | Exhaust Manifold To Cylinder Gasket | 11060-3785 | 3 |
| 4 | Exhaust Manifold To Head Pipe Gasket | 11060-3786 | 1 |
| 5 | Exhaust Head Pipe To Chamber Gasket | NLA | 1 |
| 6 | Water Pipe Gasket | 11060-3784 | 3 |

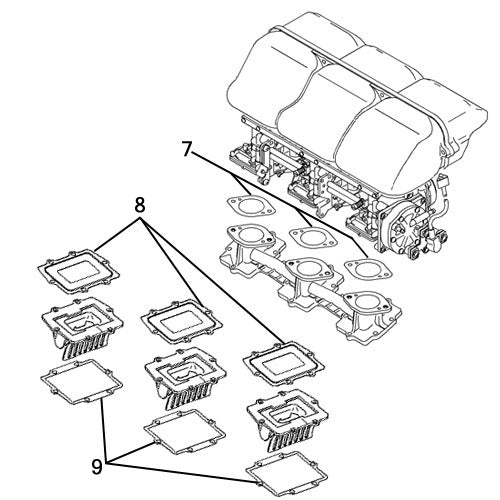

| 7 | Carb. Base Gasket - Keihin 38mm | 11060-3776 | 3 |
| 8 | Reed Valve To Intake Manifold | 11060-3757 | 3 |
| 9 | Reed Gasket To Crankcase | 11060-3717 | 3 |

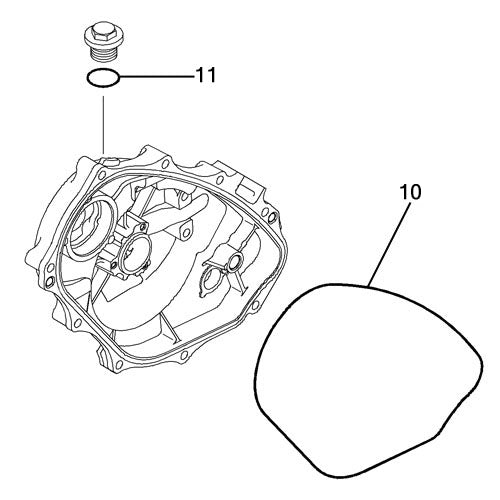

| 10 | Flywheel Generator Cover O-Ring | 92055-3748 | 1 |
| 11 | Generator Cover Oil Cap O-Ring | 92055-515 | 1 |

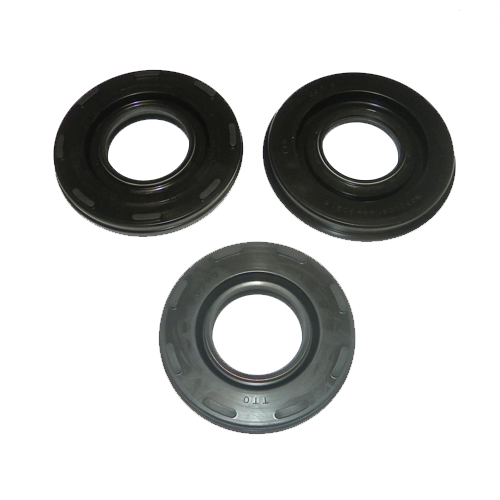

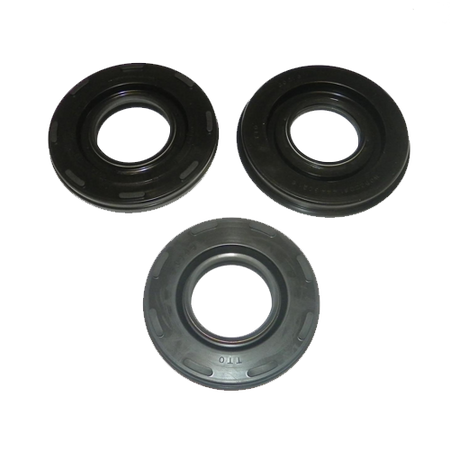

| N/S | Crankshaft Oil Seal Kit - '99 Models Only | 009-902-01T 21.72 | 1 Kit |

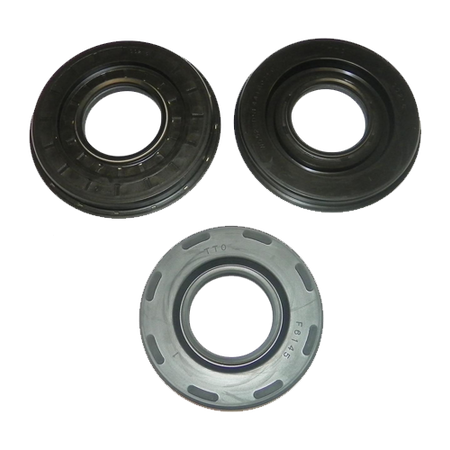

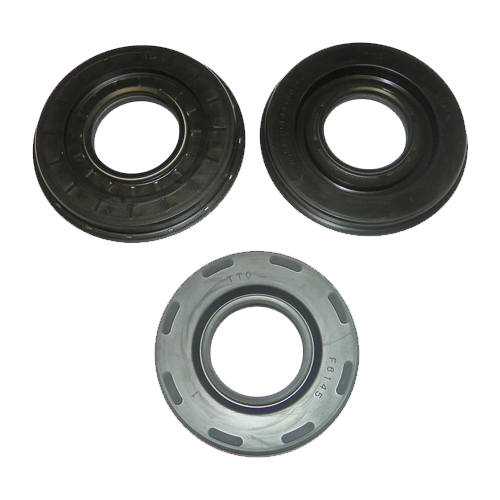

| N/S | Crankshaft Oil Seal Kit - '00 & Up Models | 009-902-02T 23.83 | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
