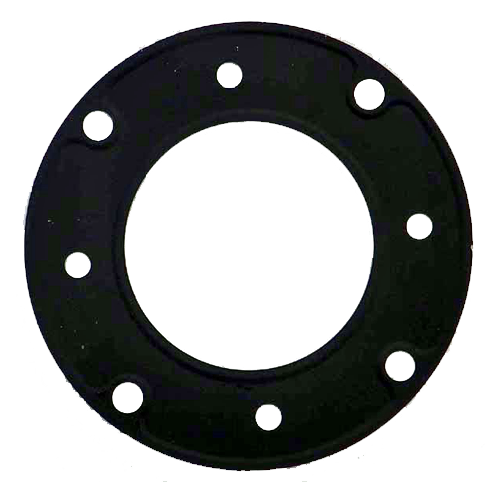

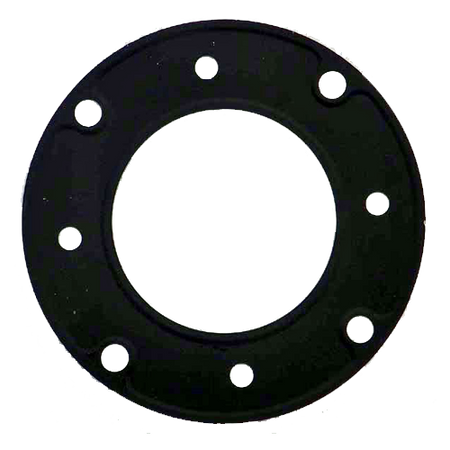

Kawasaki 650 SC '90-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 38/32mm Single Carb.
Note: All Gaskets Sold Each.

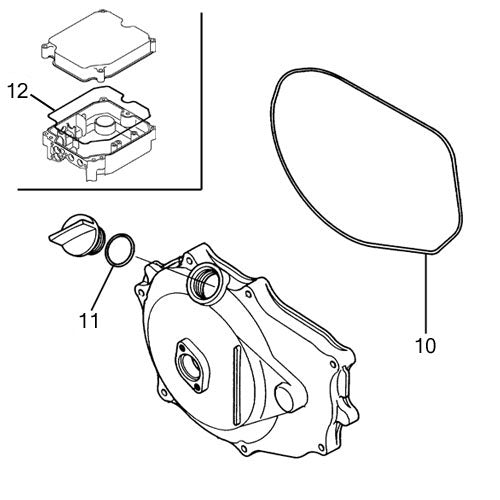

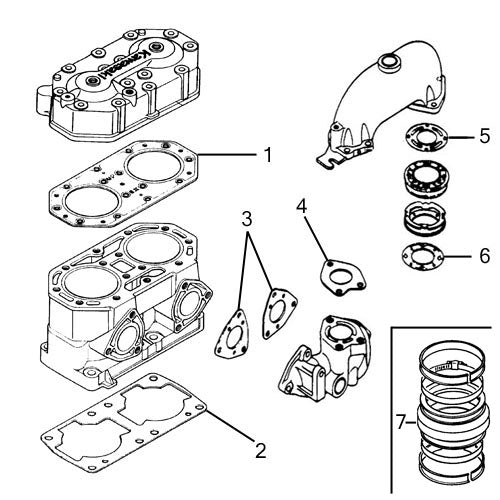

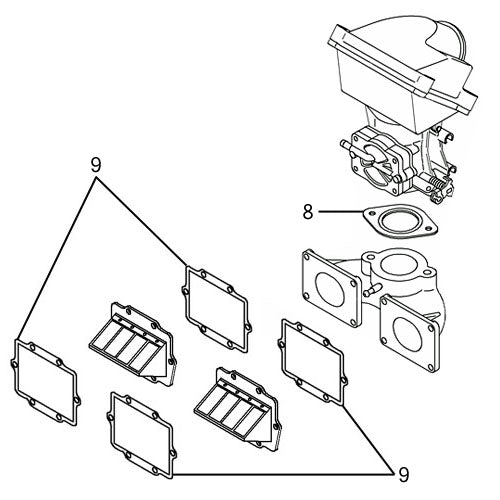

| Ref. # | Description | OEM # | Qty. Req. |
| 1 | Head Gasket (Stainless Steel) | 11004-3706 | 1 |
| 2 | Cylinder Base Gasket | 11009-3780 | 1 |
| 3 | Exhaust Manifold To Cylinder Gasket | 11060-3721 | 2 |
| 4 | Exhaust Manifold To Head Pipe Gasket | 11009-3752 | 1 |
| 4a | Heavy Duty - Exhaust Manifold To Head Pipe Gasket | 11009-3752 | 1 |
| 5 | Exhaust Pipe Gasket | 11060-3718 | 1 |
| 6 | Muffler Gasket | 11009-3756 | 1 |
| 7 | Exhaust Joint Tube | 92190-3712 | 1 |
| 8 | Carb. Base Gasket - Keihin CDK 38/32mm | 11060-3716 | 1 |
| 9 | Reed Valve Gasket | 11060-3703 | 4 |
| 10 | Flywheel Generator Cover O-Ring | 92055-521 | 1 |
| 11 | Oil Cap O-Ring | 92055-515 | 1 |
| 12 | Electric Case Gasket | NLA | NLA |
| N/S | Crankshaft Oil Seal Kit | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
