Kawasaki 750 STS '95 Individual Gaskets.
Stock Carburetor: Keihin CDK II 40mm Dual Carb.
Note: All Gaskets Sold Each.

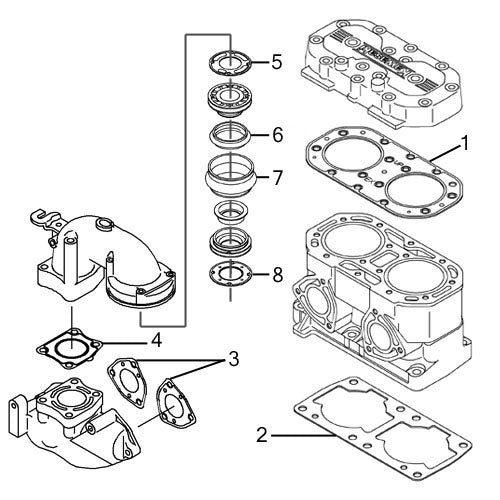

| Ref. # | Description | OEM # | Qty. Req. |

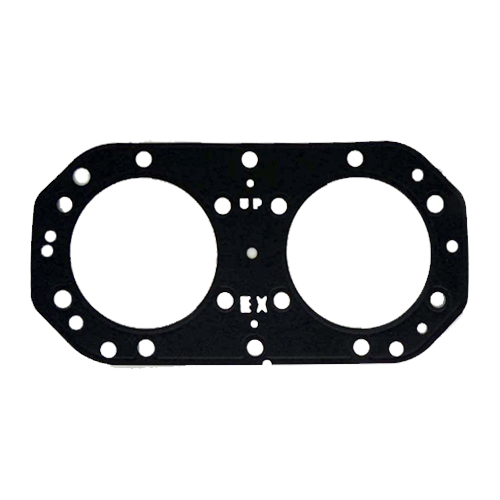

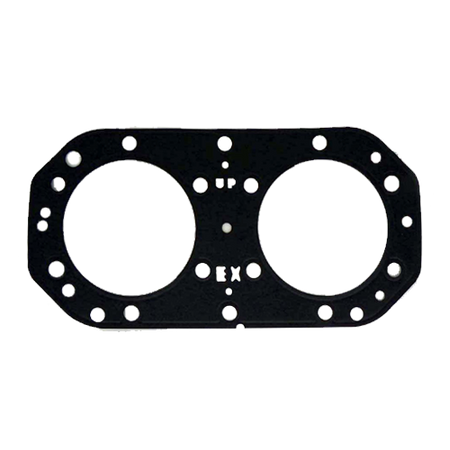

| 1 | Head Gasket (Stainless Steel) | 11004-3714 | 1 |

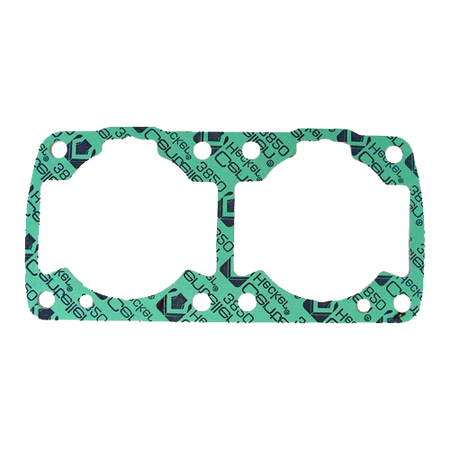

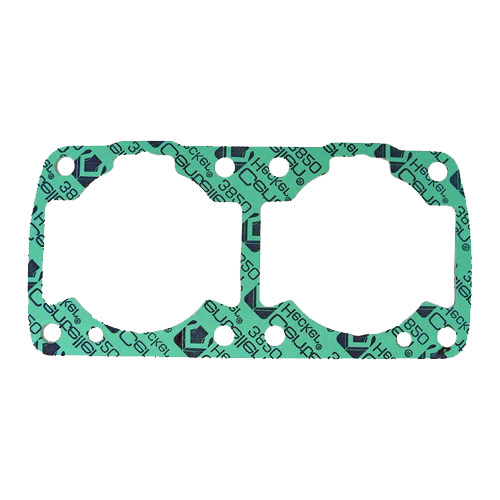

| 2 | Cylinder Base Gasket | 11009-3711 | 1 |
| 3 | Exhaust Manifold To Cylinder Gasket | 11060-3721 | 2 |
| 4 | Exhaust Manifold To Head Pipe Gasket | 11060-3732 | 1 |
| 5 | Exhaust Pipe Gasket | 11060-3718 | 1 |
| 6 | Exhaust Seal | 92093-3738 | 1 |
| 7 | Exhaust Joint Tube | 92190-3712 | 1 |
| 8 | Muffler Gasket | 11060-3724 | 1 |

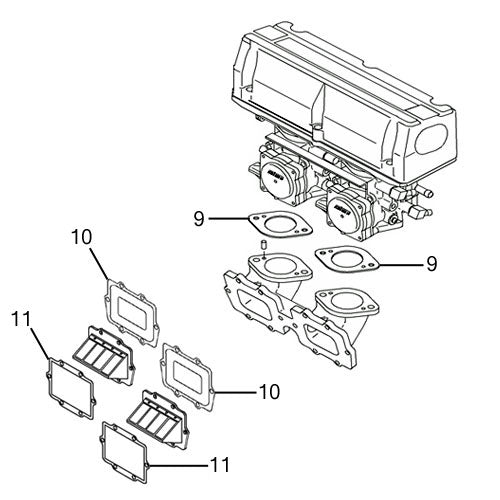

| 9 | Carb. Base Gasket - Keihin CDK II 40mm | 11060-3758 | 2 |
| 10 | Reed Valve To Intake Manifold | 11060-3757 | 2 |
| 11 | Reed Valve To Crankcase Gasket | 11060-3717 | 2 |

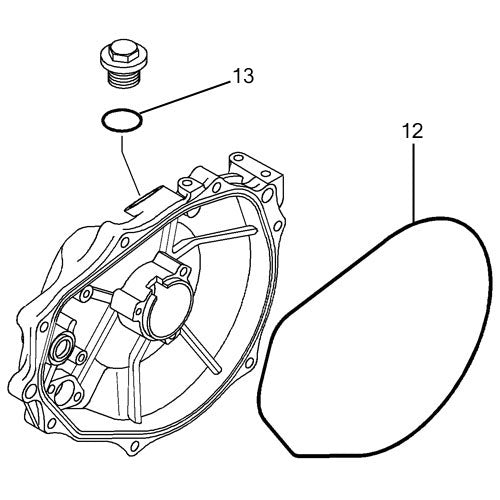

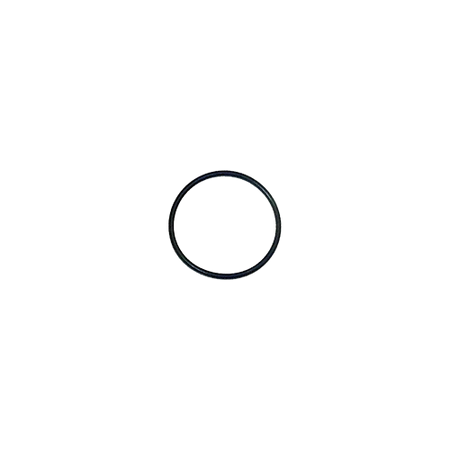

| 12 | Flywheel Generator Cover O-Ring | 92055-3712 | 1 |
| 13 | Oil Cap O-Ring | 92055-049 | 1 |
| N/S | Crankshaft Oil Seal Kit | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
