Kawasaki 900 STS '01-03 Individual Gaskets
SKU
Original price
$2.56
-
Original price
$48.24
Original price
$2.56
$2.56
-
$48.24
Current price
$2.56
Kawasaki 900 STS '01-03 Individual Gaskets.
Stock Carburetor: Keihin CDK II 38mm Triple Carb.
Note: All Gaskets Sold Each.
Ref. # | Description | OEM # | Qty. Req. |

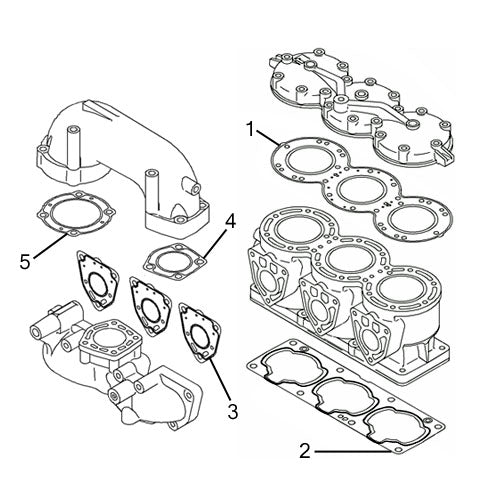

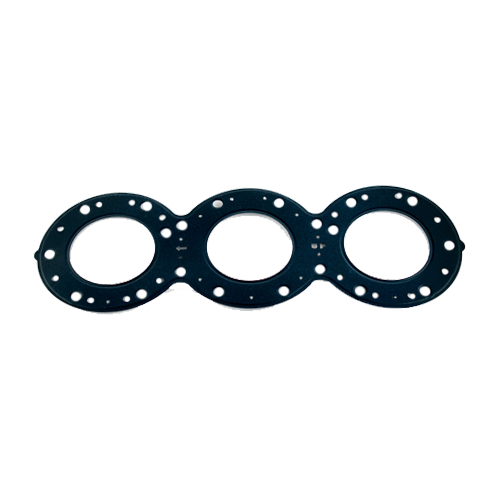

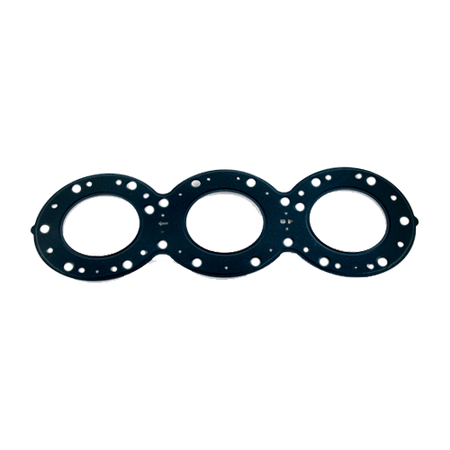

1 | Head Gasket (Stainless Steel) | 11004-3713 | 1 |

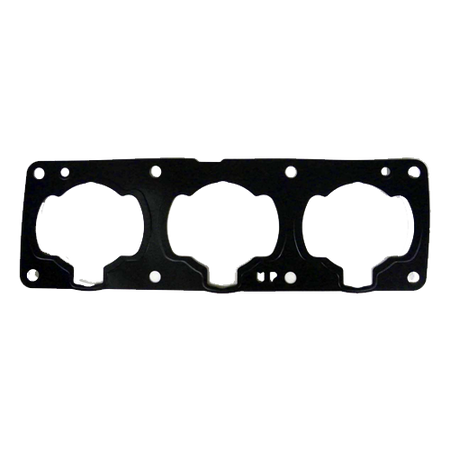

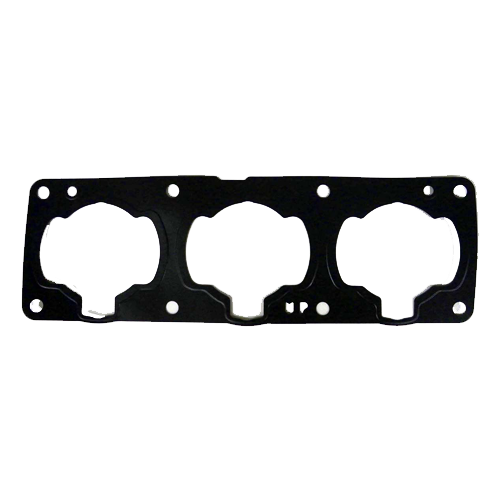

2 | Cylinder Base Gasket | 11060-3752 | 1 |

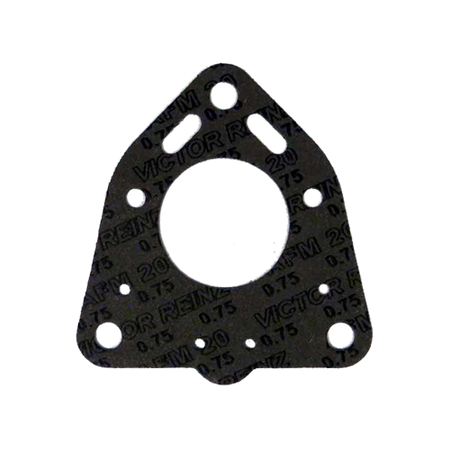

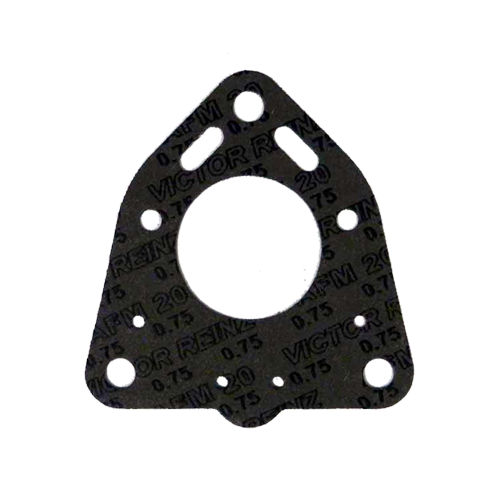

3 | Exhaust Manifold To Cylinder Gasket | 11060-3756 | 3 |
4 | Exhaust Manifold To Head Pipe Gasket | 11060-3754 | 1 |
5 | Exhaust Head Pipe To Chamber Gasket | 11060-3755 | 1 |

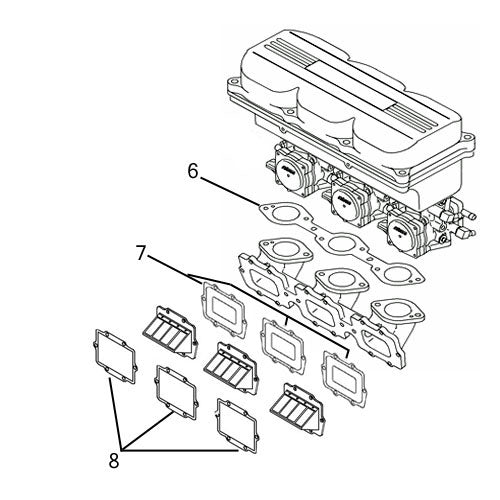

6 | Carb. Base Gasket - Keihin CDK II 38mm | 11060-3753 | 1 |
7 | Reed Valve To Intake Manifold | 11060-3757 | 3 |
8 | Reed Gasket To Crankcase | 11060-3717 | 3 |

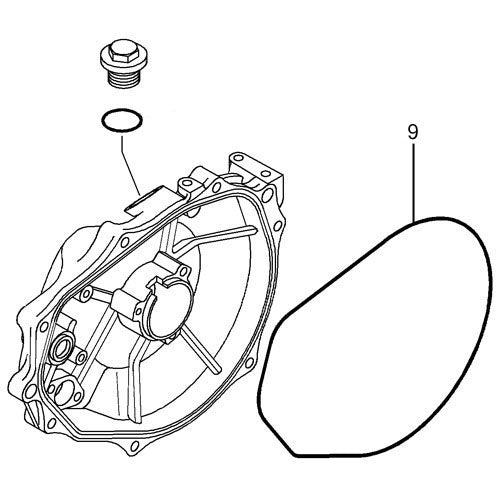

9 | Flywheel Generator Cover O-Ring | 92055-3712 | 1 |
N/S | Crankshaft Oil Seal Kit | - | 1 Kit |
NOTE: N/S - Item Not Shown On Diagram. |
