Yamaha 1995-1996 WaveRaider 1100 and 1996-1997 WaveVenture 1100 Individual Gaskets.
Stock Carburetor: Mikuni 38mm Triple Carb.
Note: All Gaskets Are Sold Each.
| Ref. # | Description | Qty Req. | OEM Number |

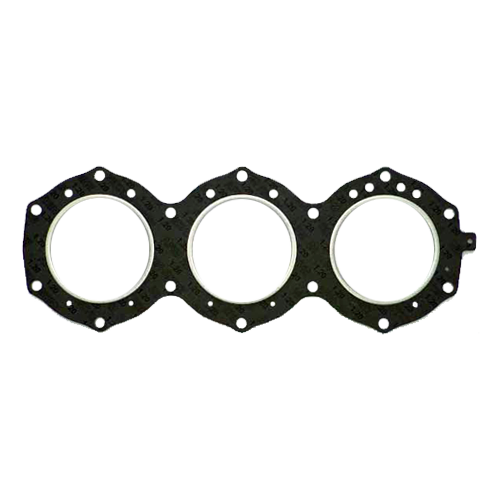

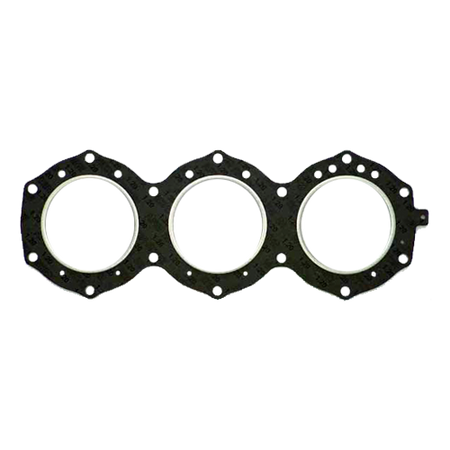

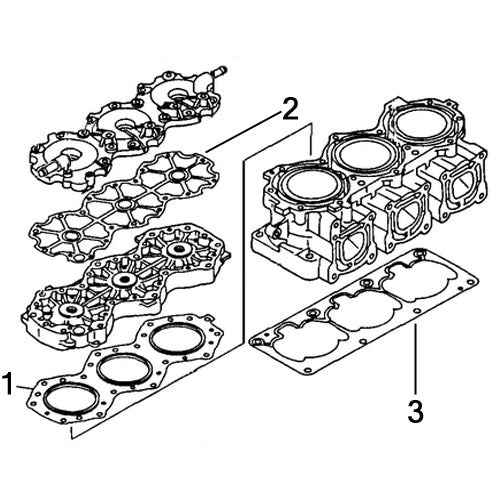

| Ref. 1 | Head Gasket | 1 | 63M-11181-00-00 |

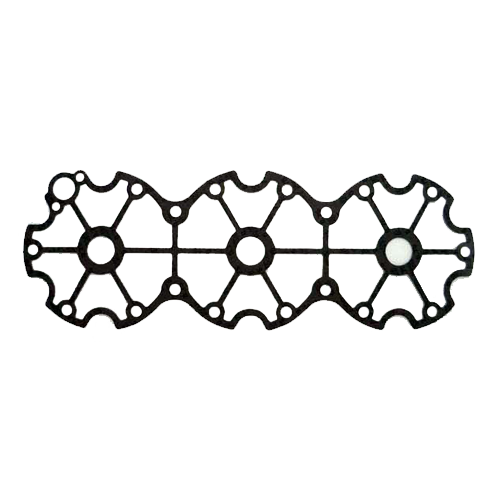

| Ref. 2 | Head Cover Gasket | 1 | 63M-11193-00-00 |

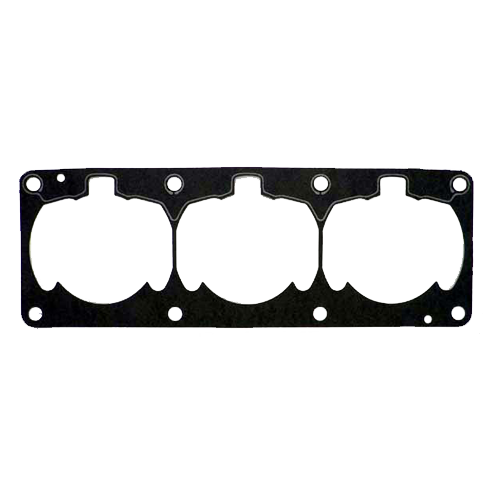

| Ref. 3 | Cylinder Base Gasket | 1 | 63M-11351-00-00 |

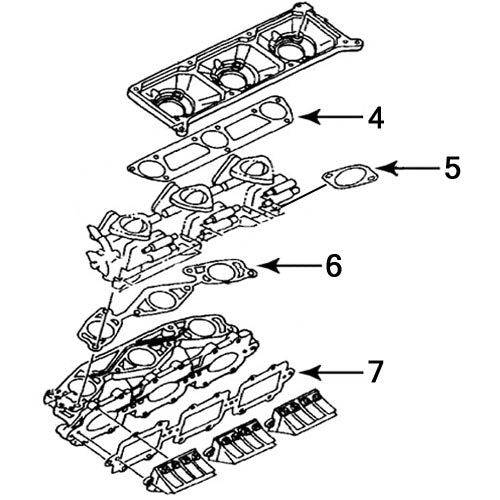

| Ref. 4 | Flame Arrestor Gasket | 1 | 63M-13674-00-00 |

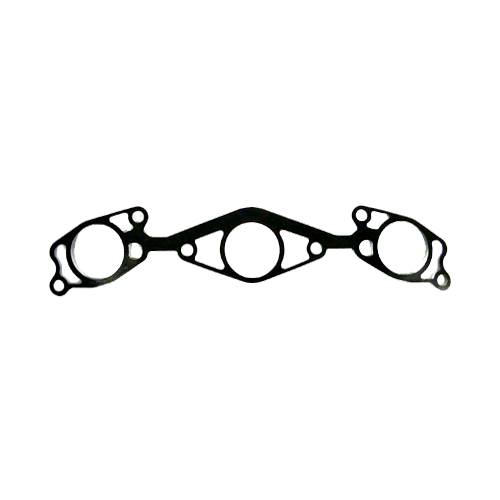

| Ref. 5 | Carburetor To Carburetor Plate Gasket | 3 | 63M-14398-00-00 |

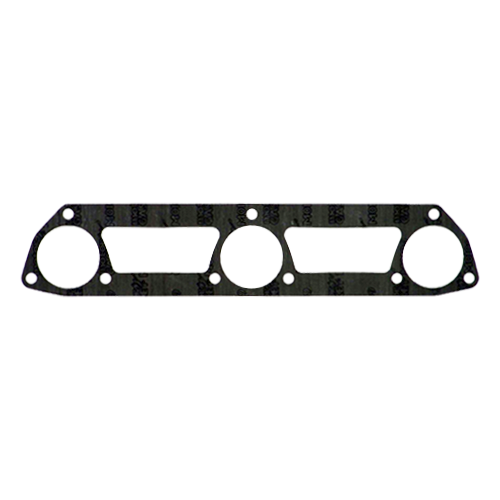

| Ref. 6 | Carburetor Plate To Intake Manifold Gasket | 1 | 63M-13556-00-00 |

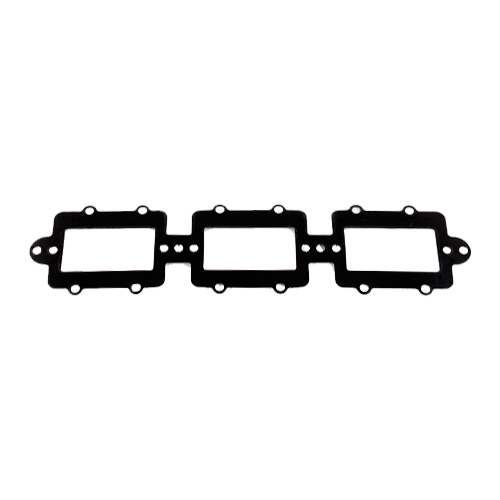

| Ref. 7 | Intake Manifold To Crankcase Gasket | 1 | 63M-13566-00-00 |

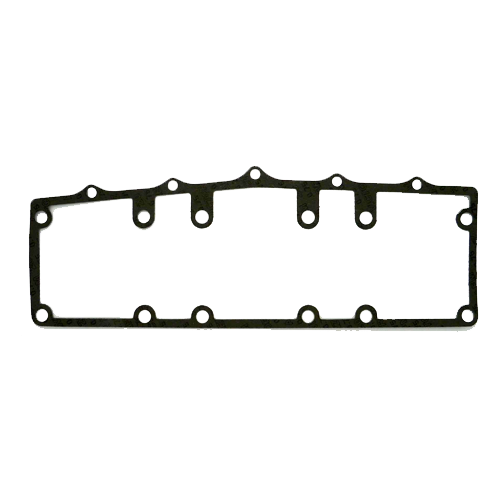

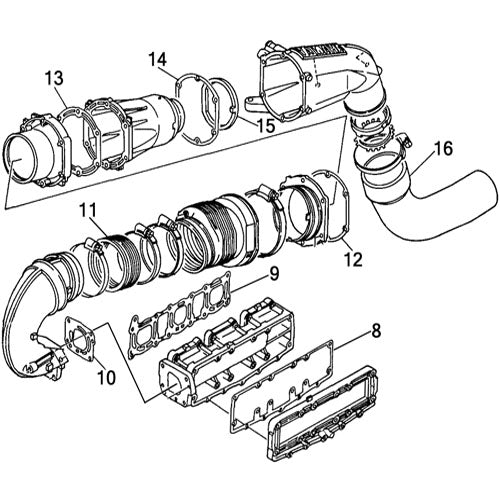

| Ref. 8 | Muffler Damper 1 Gasket | 1 | 63M-14739-00-00 |

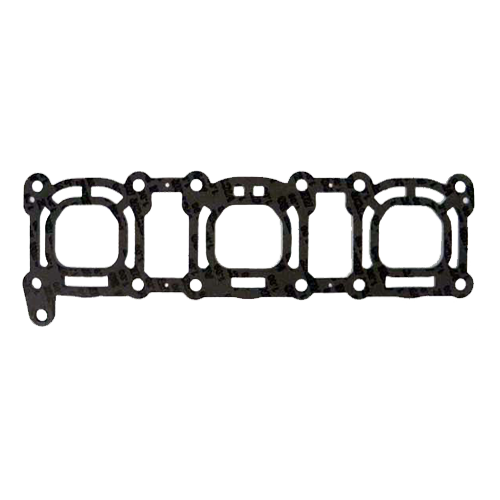

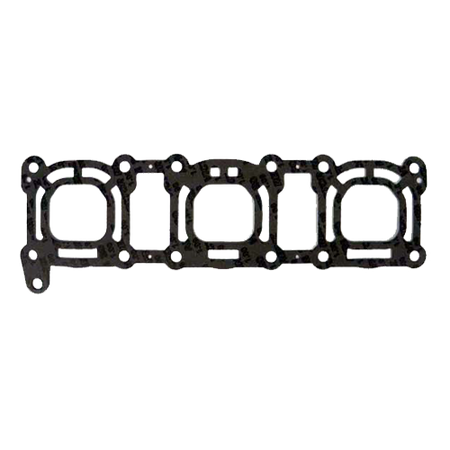

| Ref. 9 | Cylinder To Exhaust Manifold Gasket | 1 | 63M-14613-00-00 |
| Ref. 10 | Exhaust Manifold To Head Pipe Gasket | 1 | 63M-14749-00-00 |

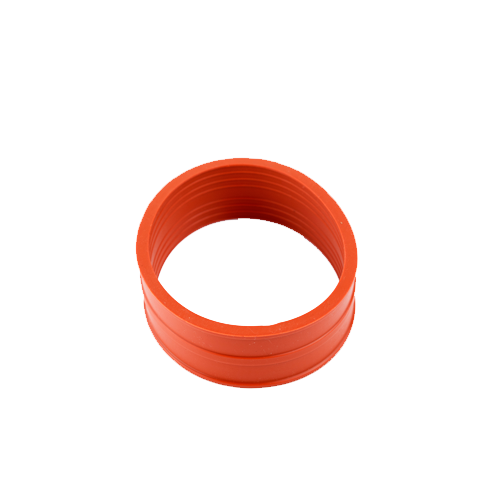

| Ref. 11 | Exhaust Coupler Joint 2 | 1 | 62T-14625-00-00 |
| Ref. 12 | Exhaust Outer Cover Gasket #1 | 1 | 63M-41114-00-00 |
| Ref. 13 | Exhaust Inner Cover Gasket | 1 | 63M-41122-00-00 |
| Ref. 14 | Exhaust Outer Cover Gasket #2 | 1 | 63M-41114-00-00 |

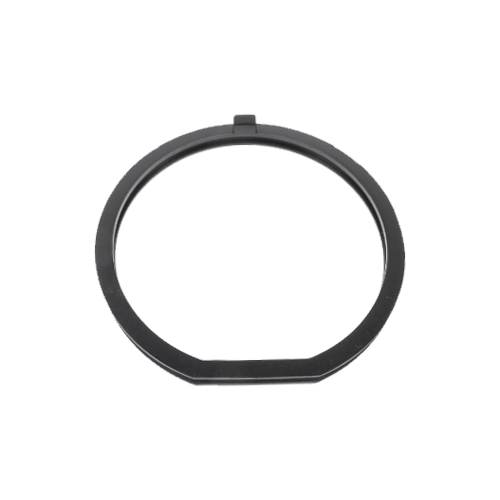

| Ref. 15 | Exhaust Rubber Seal 1 | 1 | 63M-15761-00-00 |

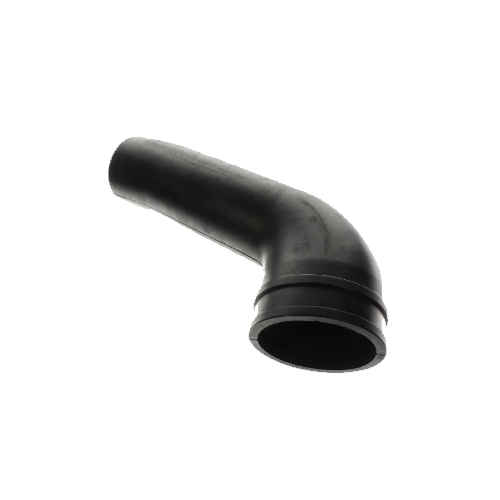

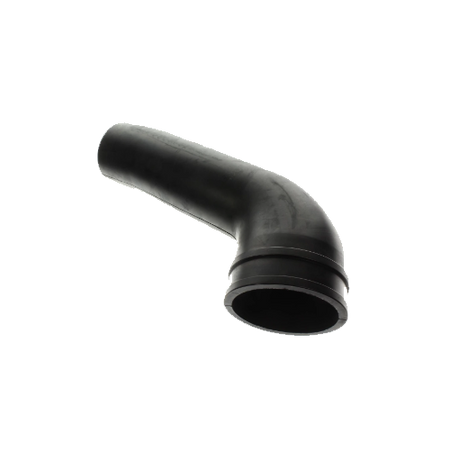

| Ref. 16 | Exhaust Outlet Pipe | 1 | 64T-14752-00-00 |
| Ref. 17 | Oil Pump Gasket | 1 | 63M-13116-00-00 |

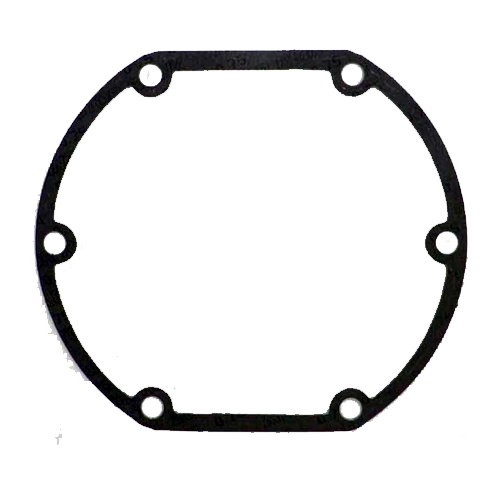

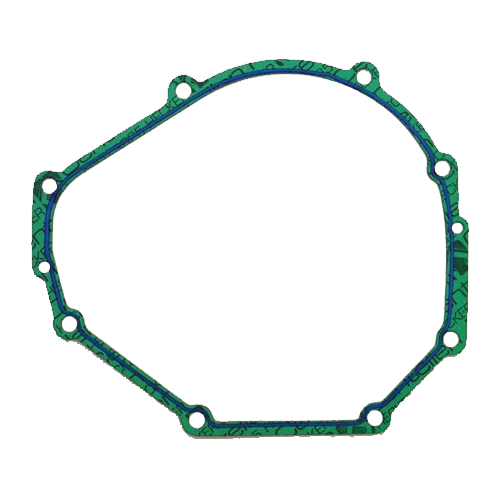

| Ref. 18 | Flywheel Cover Gasket | 1 | 63M-81365-00-00 |

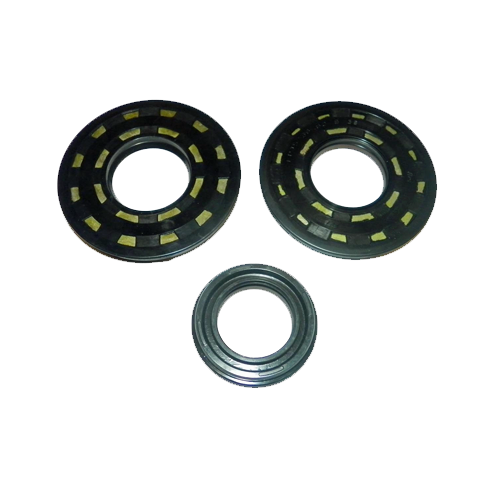

| Ref. 19 | Crankshaft Oil Seal Kit | 1 Kit | 42.2510 |
