Yamaha 701 Super Jet '96-15 Individual Gaskets
SKU
Original price
$0.98
-
Original price
$63.99
Original price
$0.98
$0.98
-
$63.99
Current price
$0.98
Yamaha 701 Super Jet 1996-2015 Individual Gaskets.
Stock Carburetor: Mikuni 38mm Dual Carb.
Note: All Gaskets Are Sold Each.
| Ref. # | Description | Qty Req. | OEM Number |

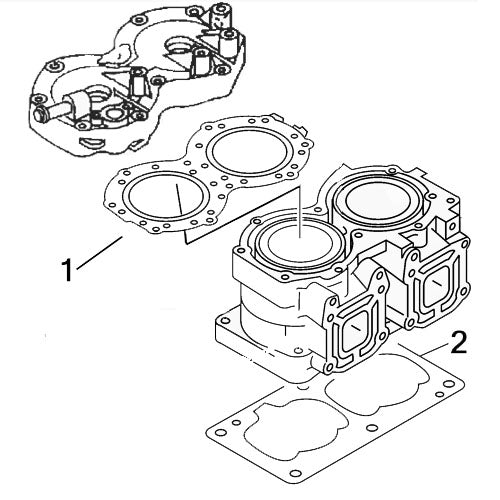

| Ref. 1 | Head Gasket | 1 | 62T-11181-00-00 |
| Ref. 2 | Cylinder Base Gasket | 1 | 6M6-11351-A2-00 |

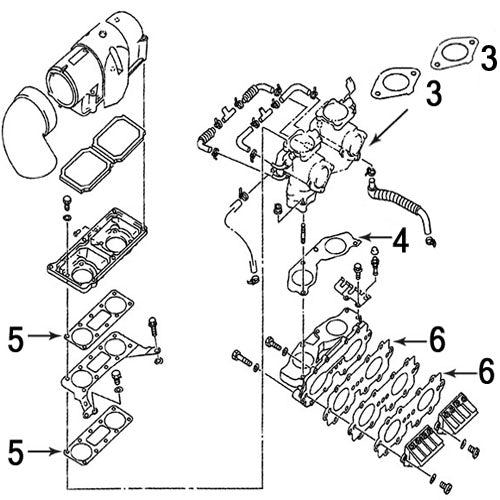

| Ref. 3 | Carburetor To Mount Plate | 2 | 5030 |
| Ref. 4 | Carburetor Mount Plate To Intake Manifold Gasket | 1 | 62T-13556-00-00 |
| Ref. 5 | Flame Arrestor Gasket | 2 | 62T-13674-00-00 |
| Ref. 6 | Reed Valve Plate Gasket | 2 | 62T-13566-00-00 |

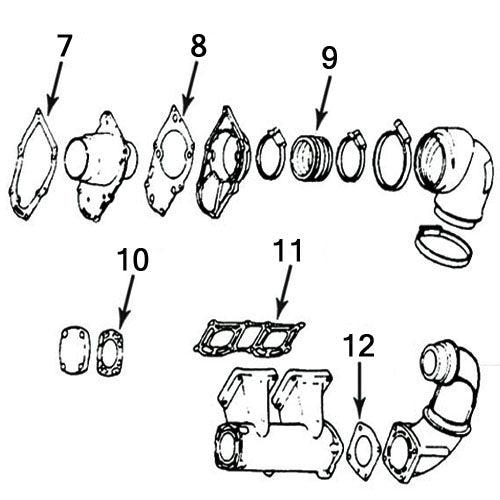

| Ref. 7 | Exhaust Silencer Gasket | 1 | 6R7-14755-A0-00 |
| Ref. 8 | Exhaust Outer Cover Gasket | 1 | 6R7-41114-A0-00 |
| Ref. 9 | Exhaust Coupler Joint 2 | 1 | 61L-14625-00-00 |
| Ref. 10 | Exhaust Pipe Gasket | 1 | 6M6-14739-A1-00 |
| Ref. 11 | Exhaust Manifold To Cylinder Gasket | 1 | 61X-14613-A0-00 |
| Ref. 12 | Exhaust Manifold To Head Pipe Gasket | 1 | 6R7-14749-A0-00 |

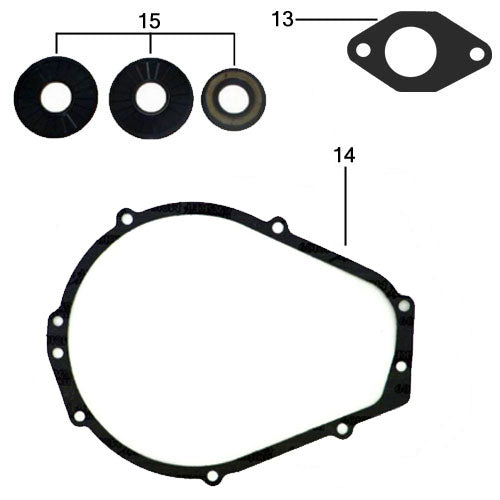

| Ref. 13 | Oil Pump Gasket | 1 | 6R8-13116-A0-00 |
| Ref. 14 | Flywheel Cover Gasket | 1 | 6M6-81365-A0-00 |
| Ref. 15 | Crankshaft Oil Seal Kit | 1 Kit | 42.2510 |
