Yamaha GP1300R '03-04 Individual Gaskets

SKU
Original price $1.14 - Original price $63.99
Original price
$1.14
$1.14 - $63.99
Current price $1.14

2003-2004 Yamaha GP1300R Power Valve Model Individual Gaskets.
Stock Carburetor: Injection.
Note: All Gaskets Are Sold Each.

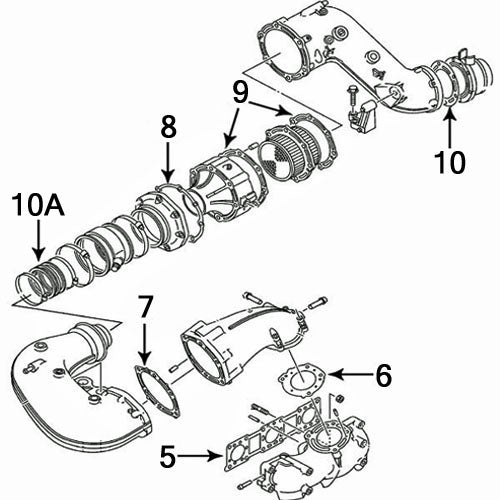

Ref. # Description Qty Req. OEM Number

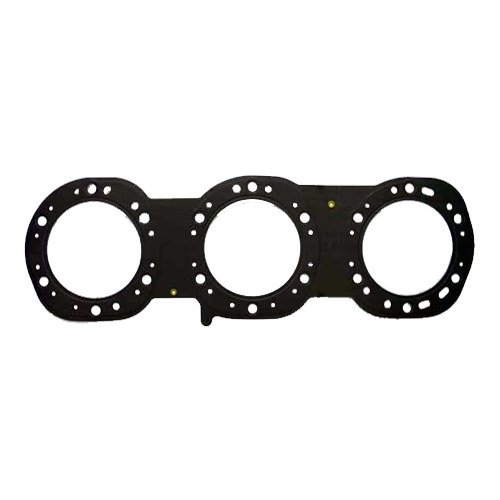

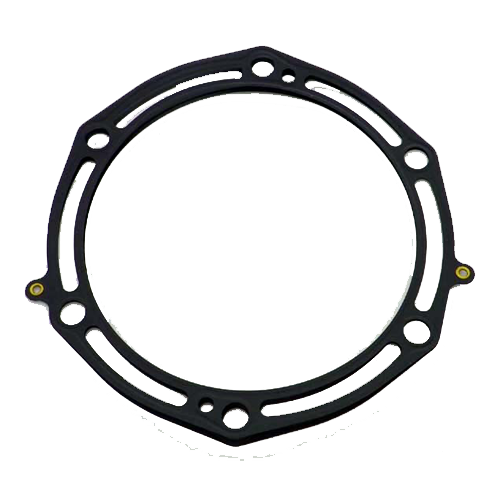

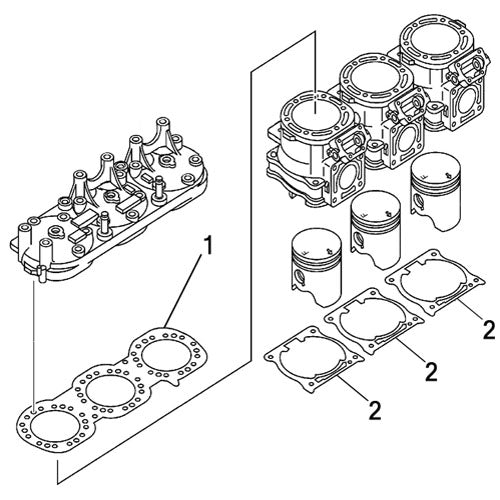

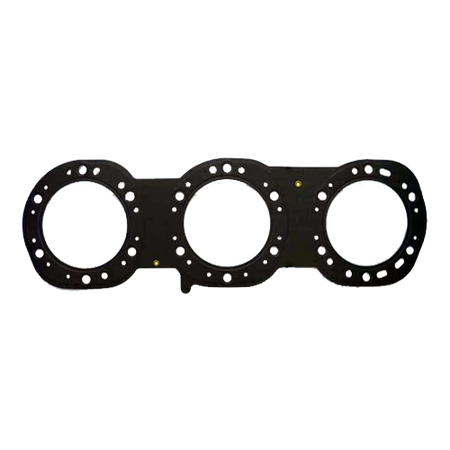

Ref. 1 Head Gasket 1 60T-11181-00-00

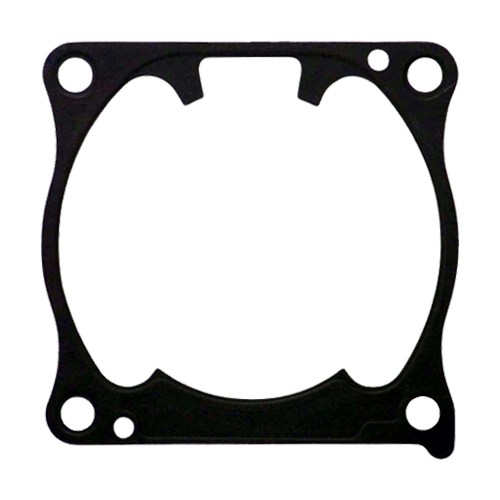

Ref. 2 Cylinder Base Gasket 3 66E-11351-01-00

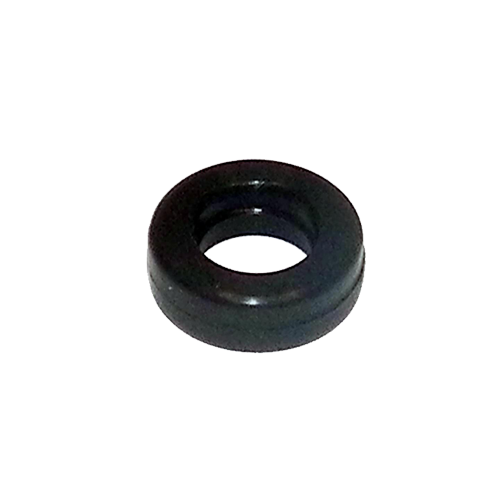

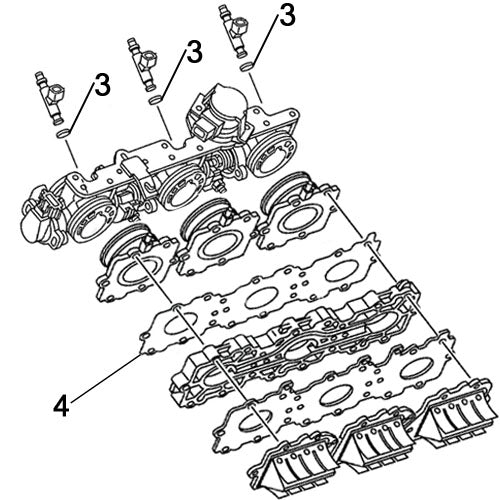

Ref. 3 Injector O-Ring 3 60T-13766-00-00

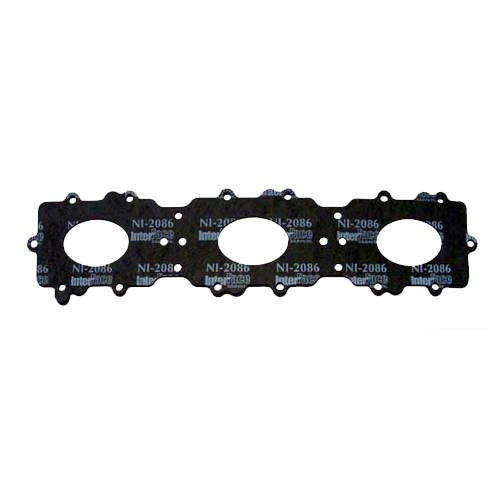

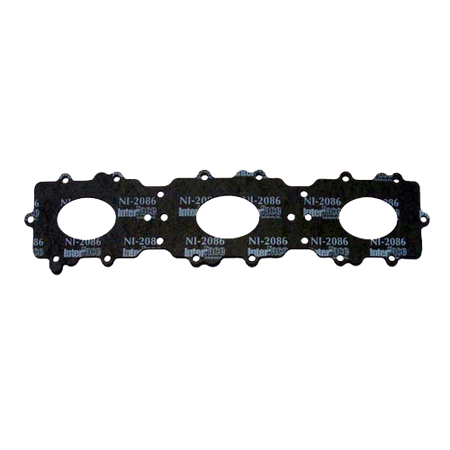

Ref. 4 Intake Manifold Gasket 1 60T-13556-00-00

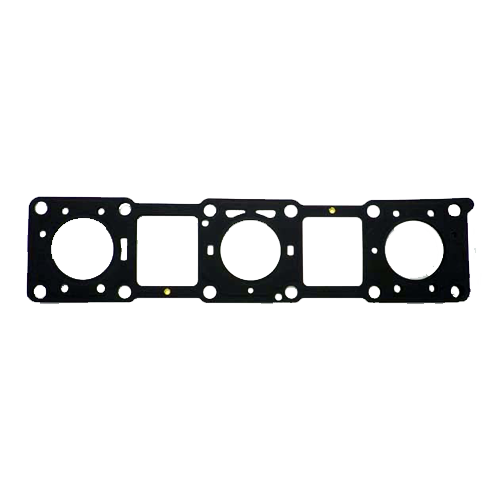

Ref. 5 Cylinder To Exhaust Manifold Gasket 1 66V-14613-00-00
Ref. 6 Exhaust Manifold to Head Pipe Gasket 1 66V-14739-00-00
Ref. 7 Exhaust Chamber Muffler Damp Gasket 1 66V-14749-00-00
Ref. 8 Exhaust Outer Cover 1 1 66V-41114-00-00
Ref. 9 Exhaust Outer Cover 2 2 66V-41124-00-00
Ref. 10 Exhaust Pipe Tail Cone Gasket 1 66V-14623-00-00

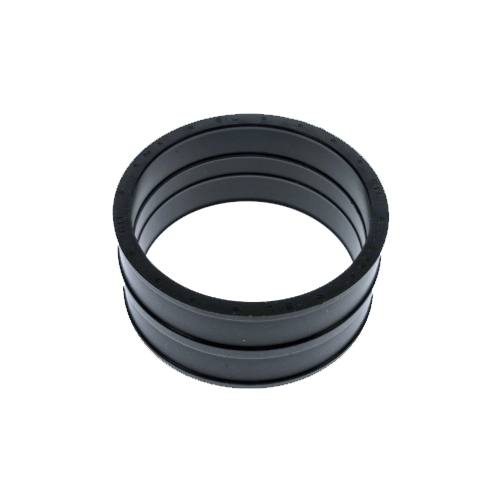

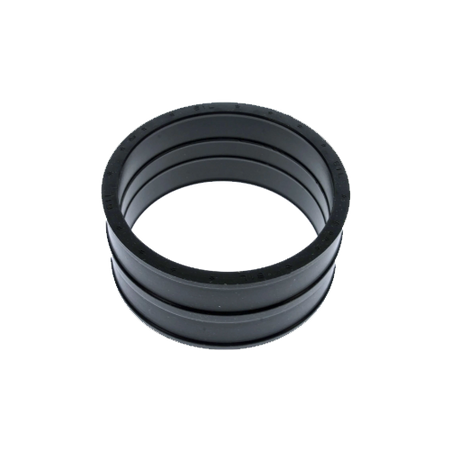

Ref. 10A Exhaust Joint Coupler 2 1 66V-14625-00-00

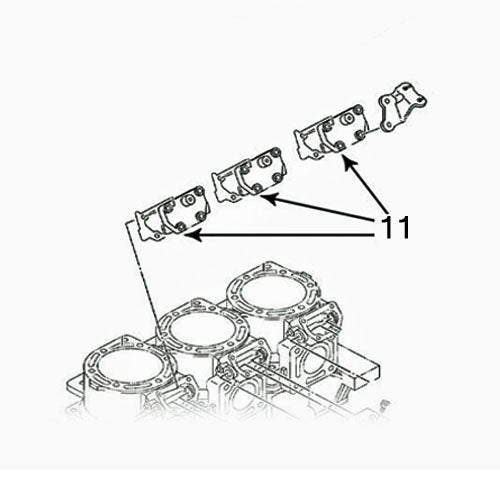

Ref. 11 Power Valve Cover Gasket 3 66E-1131B-00-00

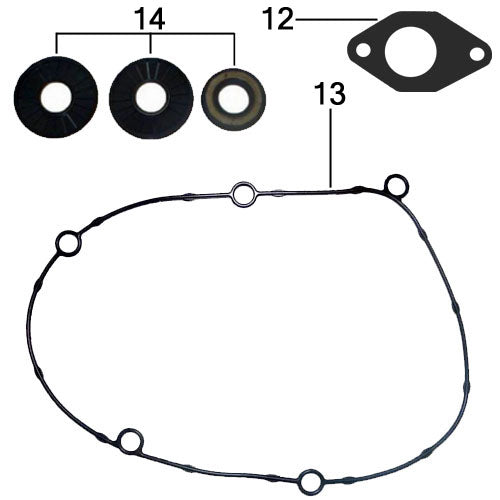

Ref. 12 Oil Pump Gasket 1 63M-13116-00-00
Ref. 13 Flywheel Cover Gasket 1 66V-81168-10-00

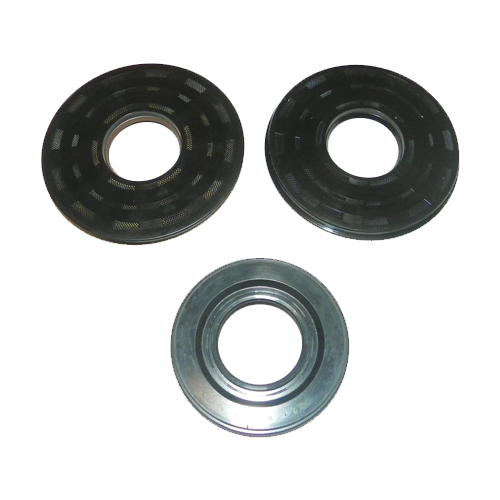

Ref. 14 Crankshaft Oil Seal Kit 1 Kit 42.2520

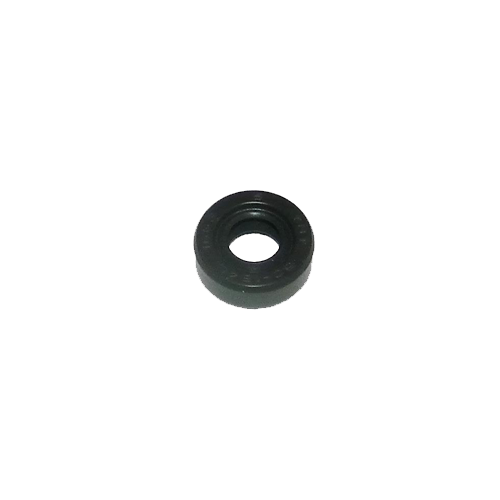

N/S Power Valve Oil Seal 6 93109-08M07-00
N/S - Not Shown On Diagram
