Yamaha Super Jet 650 '90-93 Individual Gaskets
SKU
Original price
$0.98
-
Original price
$63.99
Original price
$0.98
$0.98
-
$63.99
Current price
$0.98
Yamaha Super Jet 650 '90-93 Individual Gaskets.
Stock Carburetor: Mikuni 44mm Single Carb.
Note: All Gaskets Are Sold Each.
| Ref. # | Description | Qty Req. | OEM Number |

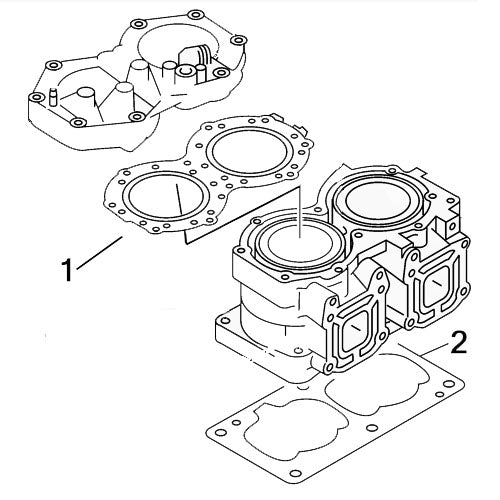

| Ref. 1 | Head Gasket | 1 | 6R7-11181-A0-00 |
| Ref. 2 | Cylinder Base Gasket | 1 | 6M6-11351-00-00 |

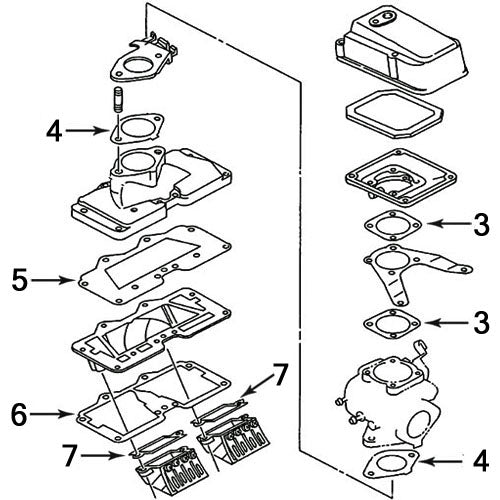

| Ref. 3 | Flame Arrestor Gasket | 2 | 6M6-13674-00-00 |
| Ref. 4 | Carburetor Base Gasket | 2 | 6M6-13556-00-00 |
| Ref. 5 | Upper Intake Manifold Gasket | 1 | 6M6-13563-00-00 |
| Ref. 6 | Lower Intake Manifold Gasket | 1 | 6M6-13566-00-00 |
| Ref. 7 | Reed Block Gasket | 2 | 6M6-13621-00-00 |

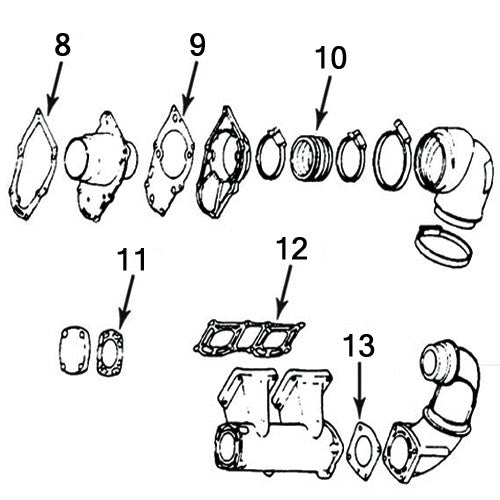

| Ref. 8 | Exhaust Silencer Gasket | 1 | 6R7-14755-00-00 |
| Ref. 9 | Exhaust Outer Cover Gasket | 1 | 6R7-41114-00-00 |
| Ref. 10 | Exhaust Coupler Joint 2 | 1 | 61L-14625-00-00 |
| Ref. 11 | Exhaust Muffler Damper 1 Gasket | 1 | 6M6-14739-A1-00 |
| Ref. 12 | Exhaust Manifold To Cylinder Gasket | 1 | 6M6-14613-A0-00 |
| Ref. 13 | Exhaust Manifold To Head Pipe Gasket | 1 | 6R7-14749-A0-00 |

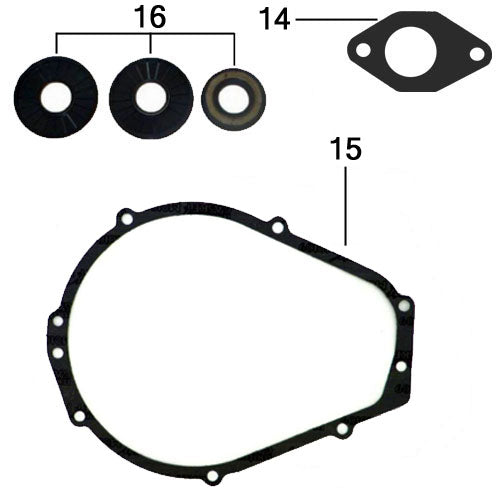

| Ref. 14 | Oil Pump Gasket | 1 | 6R8-13116-00-00 |
| Ref. 15 | Flywheel Cover Gasket | 1 | 6M6-81365-00-00 |
| Ref. 16 | Crankshaft Genuine ARS Oil Seal Kit | 1 Kit | 42.2510 |
